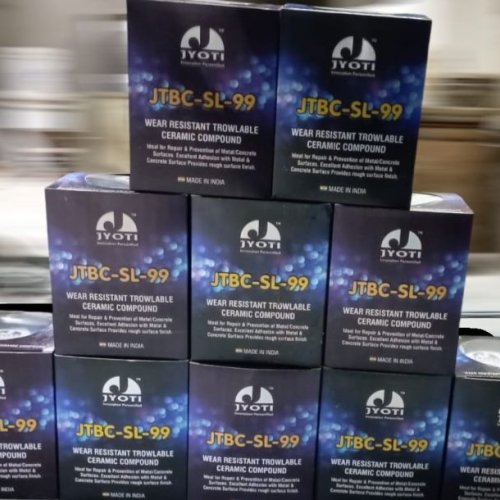

Ceramic Compound Coating Services
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
Preferred Buyer From
| Location | Worldwide |
We are ranked amongst the renowned organizations that are engaged in providing the best quality Ceramic Compound Coating Services. Offered coating service is executed by our highly skilled and experienced professionals using quality-assured coating material and modern techniques. Our professionals closely examine all the parameters associated to the offered coating service and render it in the best possible manner. Apart from this, offered ceramic compound coating service is performed as per the client's specific needs, keeping in mind their budgetary constraints.
Features:
- High abrasion resistance
- High temperature resistance
- Non machine able and rough/smooth surface finish
- Ideal for repair and prevention of surfaces
- Repair and resurface of worn out surface area
- Excellent adhesion with metal and concreate surface
- Protection against abrasive slurry and solid particles
- Cold casting and bonding of metal to metal, metal to ceramic
- Longer durable service life span
Applications Area:
- Apply as erosion resistant coating to protect metal and concreate surface
- Repairing of ceramic line parts and components
- Ceramic liner gap filling
- Development of cold cast parts
Industrial Applications:
- Pipeline
- Elbow
- Bend
- Slurry line
- Exhausters
- Tanks
- Dredging equipment
- Blowers
- Serew conveyers
- Cyclones
- Hoppers
- Chutes mud pumps
- Slurry valves
- Repairing of high alumina tiles liners
- Ball mill liner repairing
- Feed plates
- Pan casing
- Bucket elevators
- Dust collector
- Repairing
- Leak seal and patch work of differnet parts etc
- Major applications in mining, cement, power, petrochemicals, pulp and paper, fertilizers
Specifications:
| Properties | Compound (JTBC-SL-90) | Putty (JPP-SL-90) |
| Density | 3 gram/cc | 2.8 gram/cc |
| Curing time | 4 to 6 hours | 4 to 6 hours |
| Mixing ratio | 1:1 (Resin:1 hardener) | 1:1 (Resin:1 hardener) |
| Working time | 20-30 minutes | 45 minutes |
| Coverage time | 13 Kg/1 m2 @ 4-5 mm thick | 10-12 Kg/cm2 @ 4-5 mm thick |
| Machineability | Non Machineable | Machineable |
| Shore hardness | 90 D | 85-90 D |
| Finished Surface | Rough | Smooth |
| Flexural Strength | 550 Kg/cm2 | 550 Kg/cm2 |
| Water Absorption | Nil | Nil |
| Application material | All metals and concrete | All metals and concrete |
| Compressive strength | 90 Kg/cm2 | 850 Kg/cm2 |
| Application process | Trowelable | Pasteable |
| Temperature resistance | 150 degree C | 150 degree C |
