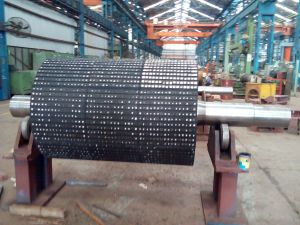

Ceramic Pulley Lagging Sheet

 “JYOTI” make RUBBER BACKED CERAMIC PULLEY LAGGING that has been designed for difficult Wet & Muddy working conditions. Only diamond Chequered Rubber is used in Pulley Lagging. It creates much problems So we have constructed from hundreds of individual Ceramic Tiles moulded into Durable Rubber Backing.

These high strength ceramic dimple tiles ensure extremely wear resistance Reduce Slippage of Conveyer Belt with Drive Pulley

· Reduce frequency of Tension of Belt

· Increase life of Bearing & Conveyer Belt accessories

· Increase Life of Pulley lagging

· Reduces wear from abrasive materials

· Increase co-efficient of friction with Belt & Pulley

· Reduce break down maintenance

Dimple tile 20mm X 20mm X 4+1mm 25mm X25mm X 5+1mm “JYOTI” RUBBER BACKED CERAMIC PULLEY LAGGING provides twice the traction of conventional rubber lagging & virtually eliminates slippage between conveyer belt & drive pulleys. It improves conveyer productivity under even the most severe operating conditions.

“JYOTI” RUBBER BACKED CERAMIC PULLEY LAGGING is combination of High-Grade Rubber & Alumina Ceramic which cover the Pulley Face & become its drive surface create the Highest Co-efficient of friction even for the material under wet, dry or muddy conditions. As a result, Rubber Backed Ceramic enables users to avoid over tensioning of belt in search of better traction which often leads to such maintenance problems such as Damaged Pulleys, Shortened Bearing Life, Failed Splices and Broken Belts. Ceramic Lagging for Pulley is bonded with rubber by hot vulcanizing.

This is specially designed by our Research Team.

Available Sizes

500mm X 500mm X 12mm or 15mm Thick (51% Ceramic Covered)

341mm X 341mm X 12mm or 15mm Thick (44% Ceramic Covered)

2000mm X 500mm X 12mm or 15mm Thick (50% Ceramic Covered)
