Solution To Corrosion

Ceramic Liner is very effective high performance perfect bonding material for proper fixing of ceramic tiles with steel plate. Normally Mortar or White Cement is normally used for fixing Tile Liners which seriously reduce the life of the surface. These mortars are poor at Chemical, Wear & Temperature resistance causing major issues.

“JYOTI ALUMINA BOND” offers Two Parts of Epoxy bonding adhesive enriched with aluminium oxide that provides strong polymerized bond on any Ceramic to Metal & Ceramic to Concrete surface with superb strength.

Feature and Benefits

•  Ceramic filled Bond
•  Having the same property of parent material.
•  Superior Adhesion to all clean surfaces.
•  Protection against Corrosion, Abrasion etc
•  Minimum Cured Time
•  Economical & Effective
•  Minimum thickness is required for Excellent adhesion

JYOTI CORRO COAT – GLASS is made from Super fine chemical resistant glass powder having 300 Mesh and other filled materials reinforce with highly corrosion proof polymers. This can adhere to almost all metallic and concrete surfaces.

These coatings are specially used when Corrosion is encountered. These products are used for repairing and prevention of any metal in Corrosion & acidic or alkali areas. It is used for getting glassy surface finish & repairing of glass lined equipment also.

FEATURES & BENEFITS

• The ability to be cured rapidly or slowly over wide range of temperature.
•  It is very law shrinkage during cure.
•  It performs excellent adhesion to many different substrates.
•  It has Good Mechanical Strength at high temperature
•  It is excellent to solvent, Acid and Alkali, salty water.
•  It has good electrical insulation properties.

JYOTI BRUSHABLE CERAMIC COATING two part Epoxy based solvent less Ceramic Coating. This is the non machine able product. Ceramic, High Aluminum Oxide and other filled materials reinforces by highly corrosion proof polymers adhere to almost all metal & Concrete surfaces. Burshable ceramic coating is specially use where Corrosion is encounter. These products are used for repairing and prevention of any metal in Corrosion & Acidic or Alkali areas. Industrial ceramic coatings are used for getting Glassy Surface finish.

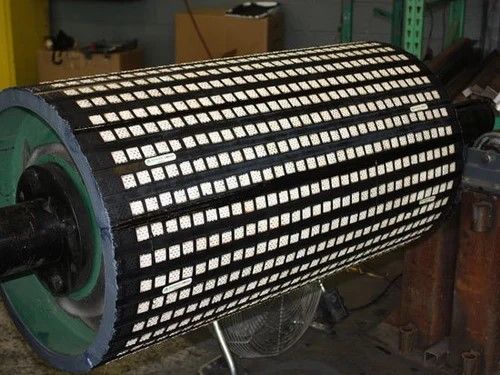

We are offering Ceramic Pulley Lagging to our client.

Product Description:

• It is cobination of high grade rubber and alumina ceramic which cover the pulley face and become its drive surface create the highest Co-efficient of friction even for the material under wet, dry or muddy conditions.

Life Comperision:

• 2 Times more than high chrome/Ni-Hard
• 3 Times more than cast chrome allowy
• 3 Times more than cast basalt
• 4 Times more than abrasion resistance steel
• 8 Times more than stainless steel
• 15 Times more than mild steel
• 43 Times more than polyurethane

Industrial Applications:

• Ball mill
• Sand mixtures
• Concrete mixtures
• Bins
• Hoppers
• Chtes
• Pipes
• Bends
• Y-Pieces, MDV
• MOE
• Orifices
• Ventury collar
• Silo
• Valves
• Packing line
• Cyclones
• Classifiers
• Slag tubes
• Hydro cyclone
• Shafts
• Sleeve
• Castings
• Separator
• ID fan
• Equipment liner
• Screw conveyer and many more place where abrasive material is stored
• Process
• Transport or move in bulk

To ensure long term performance of Coating, the proper preparation of the surface is of utmost importance & the procedure of surface preparation depends upon the severity of the application, expected service life and surface condition. A thoroughly clean abraded surface will hold the applied coating compound firmly. We recommend the following to be followed…

DIRECTION TO USE:

1. Shake well the packed bucket prior to open.

2. Stir the Resin on opening prior to removal of required quantity.

3. Collect the required quantity only from bucket 3part Resin & 1part Hardener & sealed the balance            material bucket immediately.

4. Mix the Resin & Hardener properly in recommended mixing ratio.

5. On preparation of properly mix material ratio, the mixture must apply immediately within 30 minutes.      (Pot life varies with ambient temperature & quantity of the mixture & also the Viscosity depends on   the  ambient temperature & quantity of the mixture & pot life of the mixture).

6. Apply the second coat between 20 to 30 minutes after first coat. (For where ever the second coat of          respective material recommended).

7. After successful of application, permit 5 to 6 hours curing time before transportation, assembly etc.         purpose, however the actual use of surface contact area functional material application is recommended  after 24 hours. (Working time & curing time of the coating depends on the mixed mass & temperature. Higher the ambient temperature, faster will be the rate of curing).

8. Maximum 5% of Epoxy/NC Thinner for thinning the coating material.

9. For Sprayable coating application the Pilot Spray Gun Type P - 80 (Gravity feed gun with 0.75 Ltrs. capacity gravity cup) Nozzle aperture size - 1.57 mmis recommended.

10. Shelf life of the material in original airtight packed container is 8 to 10 months.

JYOTI CORRO COAT GLASS is made from Super fine chemical resistant glass powder having 300 Mesh and other filled materials reinforce with highly corrosion proof epoxy polymers. This can adhere to almost all metallic and concrete surfaces.

features:

• anti stick
• dust proof
• high temperature & thermal shock resistant
• high adhesion with almost all cleaned surface
• high corrosion resistant
• glassy / mat finish surface
• easy & time saving application
• longer durable service life span
• odour free application

application area:

• acid / alkali area application
• portable water tank application
• high adhesion to metallic & concrete surface
• highly corrosive & for costal area applications
• alternate application usage of pu, epoxy, frp, glass coat, etc. paints & coating,
• rubber lining, flooring ( brushable ), etc.

industrial applications:

• chemical process storage tanks & vessels, impeller, casing, housing, flange, pumps & valves, pipeline, glass lined vessels, cooling tower structure, wind mill, mobile & electric tower structure, waste water, ship propeller & marine, transformer, metal parts & structure, acid proof floor coating, metal parts & structural frames etc.
• applications at sugar, paper & pulp, fertilizer, cement, shipping, mining, acid & alkali chemical, oil & gas at all engineering plant, equipment & machinery industries.
• also available in sizes like 5l,10l and 20l.

We offer Epoxy Zinc Rich Primer with high-quality Zinc Dust to our valuable clients. This primer provides significant benefits over normal Iron oxide primers. The Zinc pigment in the dry film provides excellent protection to steel surfaces, tanks, pipelines, and plant components in both interior and exterior surfaces exposed to damaging conditions.

Additionally, it provides cathodic protection to steel and offers good resistance by undercoating damaged areas. This primer can be overcoated with a wide range of topcoats.

Application

Apply as a primer cost of Zinc rich Primer.

Anti Corrosion Exterior Metal surface coating.

Marine Coating application.

Structural Application.

Brushable Ceramic Coating is the non machinable product. Ceramic, High Aluminium Oxide and other filled materials reinforces with highly corrosion proof polymers adhere to almost all surfaces. These coatings are specially used when Corrosion is encountered. These products are used for repairing and prevention of any metal in Corrosion & Acidic or Alkali areas. It is used for getting Glassy Surface finish.

Benefits:

• Ceramic filled Coatings
• The same property of Parent Material
• Glassy Surface Finish
• Protection against Corrosion, Abrasion etc
• Protection against Chemicals
• Cured Time is Minimum
• Covers Large Area i.e. Output is Superb
• Simple & easy to apply
• Economical

We JYOTI INNOVISION PRIVATE LIMITED mfg. and solution provider for Highly corrosion resistant marine coating for ship propeller and Ship body. Our coating having 100% volume of solids and more then 1500 salt spray test passed AND 0% CORROSION LOSS as per ASTM B 117.

Anti Stick

Dust Proof

High Temperature & Thermal Shock Resistant

High Adhesion With Almost all cleaned surface

High Corrosion Resistant

Glassy / Mat Finish Surface

Easy & Time Saving Application

Longer Durable Service Life Span

Odour free Application

“JYOTI” has formulated & developed self-priming ceramic-based corrosion protection coating. High alumina, Zirconium, sio2, filled in epoxy polymer base coating to ensure and to prevent corrosion from acidic / alkali, conditions. These coatings are most suitable for the places where portable water is stored in high temperature up to 100 ℃ in inner tank of solar water heater, heat pumps, water tanks, this coating ensures high corrosion, protect from bad smell contaminated with water, sticking of impurities in body of tank.
