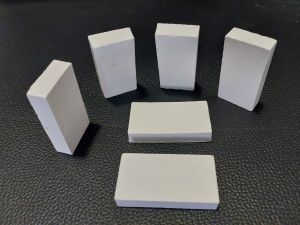

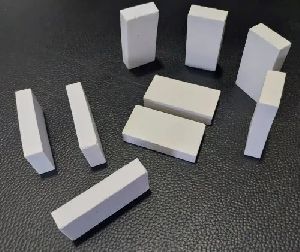

High Alumina Ceramic Liner
| Business Type | Manufacturer, Exporter, Supplier, Distributor |
| Country of Origin | India |
| Type | Alumina Ceramic Liners |
| Material | Alumina Ceramic |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Size in MM LENGTH (MM) WIDTH (MM) THICKNESS RANGE (MM) SHAPE
10X10 10 10 2.5-4 Square
17.5X17.5 17 17 3-5 Square/Hex/Cylinder
20X20 20 20 4-15 Square/hex/Cylinder
20X20 DIMPLE 20 20 4+1 Square + Pre-engg.
25 X 25 25 25 4-15 Square/Hex/Cylinder
25X25DIMPLE 25 24 5+1 Dimple Square/Pre-Engg.
50X25 50 25 6-20 Rectangle/Pre-engg.
50X50 50 50 6-25 Square/Pre-Engg.
75X50 75 50 8-30 Rectangle/Pre-engg.
100X50 100 50 10-30 Rectangle/Pre-engg.
150X100 150 100 12-30 Rectangle/Pre-engg.
150X50 150 50 15-30 Rectangle/Pre-engg.
190X100 190 100 15-30 Rectangle/Pre-engg.
HIGH ALUMINA CERAMIC TILE LINERS & CERAMIC LINED PARTS are developed for highly wear prone applications such as Coal base unit, Mud Convey, Acid paste, Ash Handling, Mining, Cement, Steel, Mineral Processing units etc.
The Hardness of “ALUMINA CERAMIC” Liners is next to diamond that indicates it is extremely hard material, proving itself as one of the best wear resistance materials. It lasts more than any other conventional material to take all abuse associated with bulk material handling. One addition benefit of the product is its high Wear Resistance properties & performance in a High Temperature / Corrosion environment.
“ WEAR PLATE SHEET” is very effective product range as it starts from even 3mm thickness & offers easiest application for any profile and convenience for any technician.
SPECIFICATIONS:
|
Size in MM |
LENGTH (MM) |
WIDTH (MM) |
THICKNESS RANGE (MM) |
SHAPE |
|
10X10 |
10 |
10 |
2.5-4 |
Square |
|
17.5X17.5 |
17 |
17 |
3-5 |
Square/Hex/Cylinder |
|
20X20 |
20 |
20 |
4-15 |
Square/hex/Cylinder |
|
20X20 DIMPLE |
20 |
20 |
4+1 |
Square + Pre-engg. |
|
25 X 25 |
25 |
25 |
4-15 |
Square/Hex/Cylinder |
|
25X25DIMPLE |
25 |
24 |
5+1 Dimple |
Square/Pre-Engg. |
|
50X25 |
50 |
25 |
6-20 |
Rectangle/Pre-engg. |
|
50X50 |
50 |
50 |
6-25 |
Square/Pre-Engg. |
|
75X50 |
75 |
50 |
8-30 |
Rectangle/Pre-engg. |
|
100X50 |
100 |
50 |
10-30 |
Rectangle/Pre-engg. |
|
150X100 |
150 |
100 |
12-30 |
Rectangle/Pre-engg. |
|
150X50 |
150 |
50 |
15-30 |
Rectangle/Pre-engg. |
|
190X100 |
190 |
100 |
15-30 |
Rectangle/Pre-engg. |
